Description

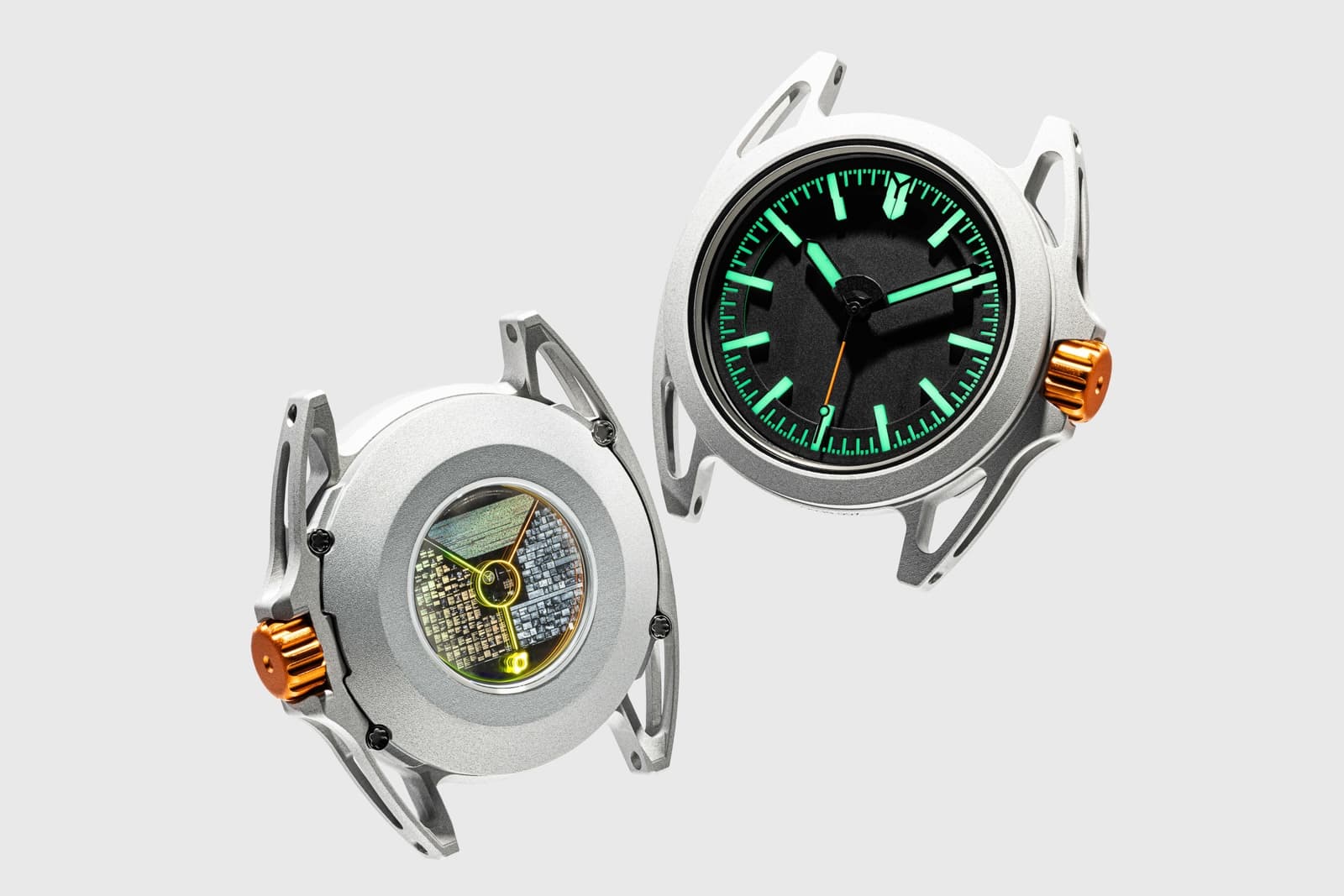

The Barrelhand Monolith, unveiled on 28 May 2026, is the production version of the "mission-grade space watch" California-based independent Barrelhand has been building toward since 2019. Founded by Karel Bachand — an aerospace-and-watch engineer whose Monolith IM-1 prototype caseback flew on the Intuitive Machines IM-1 lunar lander in February 2024 — the brand has reworked that lunar test article into a full commercial reference: a 38 × 11.8 mm 3D-printed Scalmalloy chassis with Aircore polyamide insulation, an Aerolight X2 ceramic lume dial four times brighter than printed Super-LumiNova X1, and a 19 mm NanoFiche disc in the caseback holding 3 GB of human cultural data rated to outlast 1,000 years.
At USD 9,750 with deliveries scheduled for Q4 2026, the Monolith is one of the most unusual value-for-engineering plays of the year. The spec sheet reads more like satellite hardware than horology — pressure-rated from vacuum to 20 atm, operationally rated −120 °C to +120 °C, shock-rated to 3,000 g, ISO aerospace-compliant, EVA/IVA-protocol tested — and the price is roughly a quarter of comparable additive-manufactured-case independents.
Design

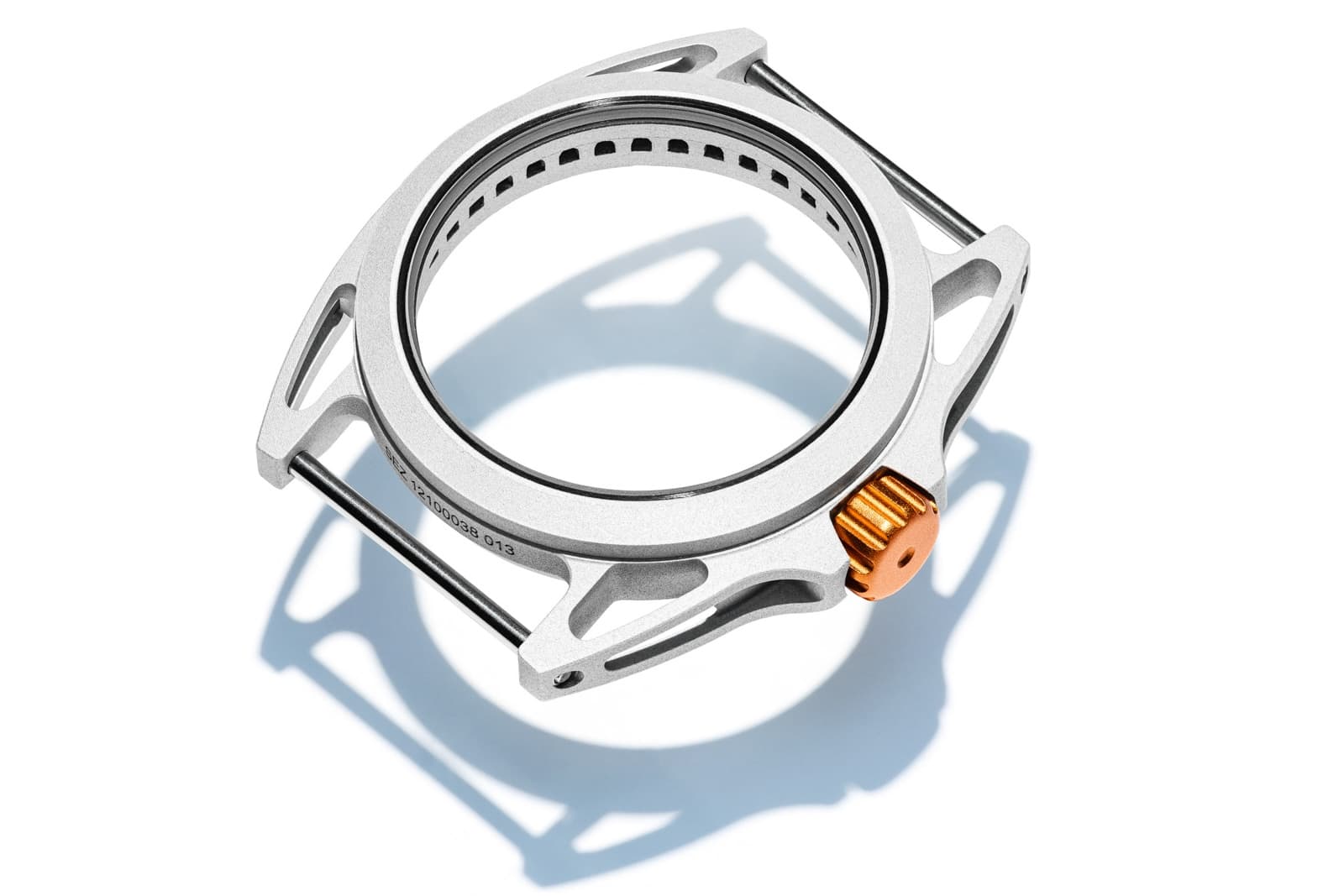

The 38 mm openworked case is 3D-printed in Scalmalloy, the aluminium-magnesium-scandium alloy developed by Airbus APWorks, with an internal Aircore polyamide insulating layer between chassis and movement. Total weight is just 31 g — roughly half the weight of a comparable titanium watch of the same dimensions — yet the chassis is rated to ISO aerospace-equivalent shock and pressure standards. The case is finished with a matte bead-blasted texture across the openworked structure, with the printed lattice deliberately left visible.

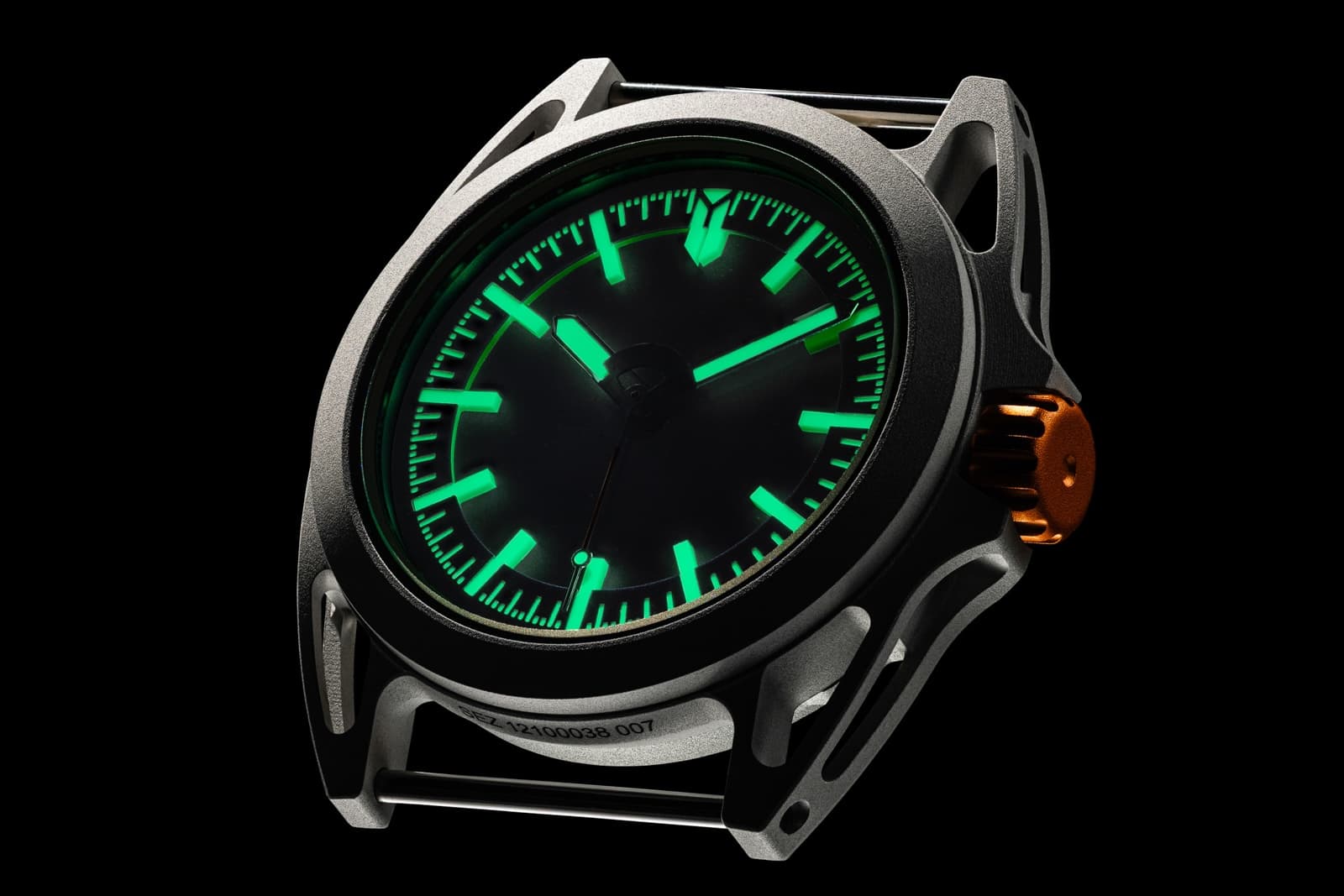

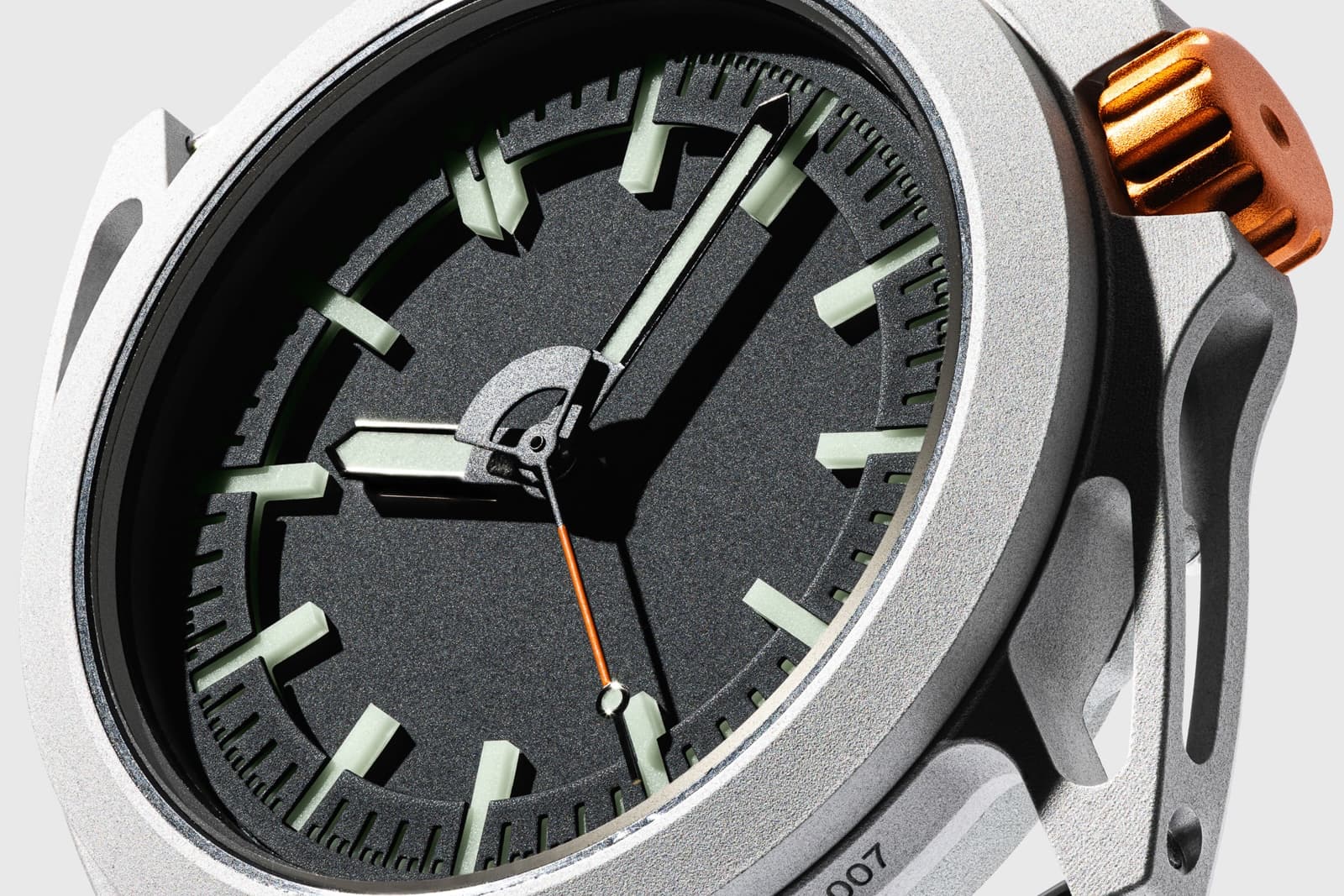

The dial is built from two matte-black brass plates sandwiching solid blocks of Aerolight X2 ceramic lume — a laser-welded solid-block lume substrate four times brighter than printed Super-LumiNova X1 and vacuum-stable rather than pigment-binder dependent. The crystal is C-plane sapphire, a single-crystal orientation roughly twice as strong as conventional sapphire and used in equal thickness on both the dial and the caseback. The caseback houses the watch's editorial centrepiece: a 19 mm NanoFiche disc mounted under sapphire, holding 3 GB of curated cultural data — UNESCO translations, the original French edition of Le Petit Prince, children's artwork, Richard D. James audio fragments — rated to outlast 1,000 years under vacuum, radiation and thermal-extreme conditions.
Specifications
- Reference: Barrelhand Monolith (Q4 2026 production)
- Case diameter: 38 mm
- Case thickness: 11.8 mm
- Lug-to-lug: ~45 mm
- Case material: 3D-printed openworked Scalmalloy (Al-Mg-Sc alloy) with Aircore polyamide insulation
- Crystal: C-plane sapphire (dial and caseback), ~2× the strength of conventional sapphire
- Caseback: 19 mm NanoFiche disc archive (3 GB, rated >1,000-year lifespan) under sapphire
- Water / pressure resistance: Vacuum to 20 atm
- Operational temperature: −120 °C to +120 °C
- Shock resistance: 3,000 g
- Standards: ISO aerospace, EVA/IVA protocols, NASA materials guidance
- Dial: Two matte-black brass plates with laser-welded Aerolight X2 ceramic lume (~4× brighter than Super-LumiNova X1)

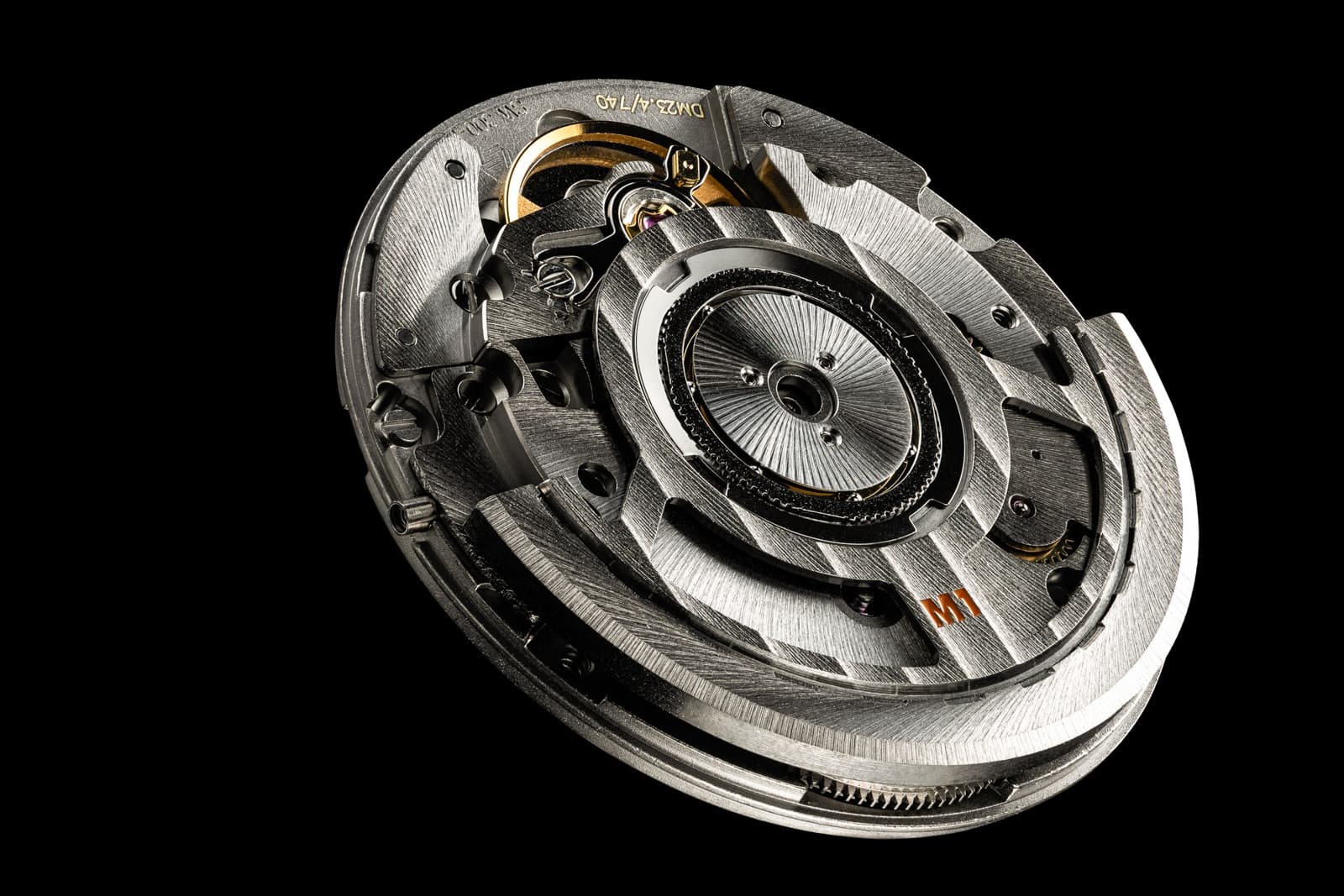

- Movement: Barrelhand M1 Engine — heavily modified Sellita SW300-1b
- Complications: Hours, minutes, central seconds
- Balance: Glucydur free-sprung
- Frequency: 28,800 vph (4 Hz)
- Winding: Automatic, skeletonised rotor
- Power reserve: 50 hours
- Jewels: 25
- Strap: Quick-release rubber on titanium pin buckle
- Total weight (no strap): 31 g
- Price: USD 9,750
- Availability: Open orders; deliveries Q4 2026
What's Exciting
Three editorial threads converge on the Monolith and all three are unusual for a sub-USD-10k indie. First, additive manufacturing: Scalmalloy 3D-printed cases have, until now, been the territory of multi-five-figure exotica — Bell & Ross's CRBNX Aviation, HYT's H2, Panerai's Submersible Carbotech, IWC's Big Pilot Top Gun Ceratitanium — almost always priced an order of magnitude above the Monolith. Producing a 31 g openworked Scalmalloy chassis at USD 9,750 is the kind of value-engineering move that only an indie with the additive-manufacturing process in-house can credibly attempt. Second, mission-grade testing: the spec sheet (vacuum-to-20-atm pressure, −120 °C to +120 °C operating range, 3,000 g shock, ISO aerospace standards, EVA/IVA protocols) is the kind that satellite-instrument hardware carries — not horology — and Barrelhand's heritage as an aerospace-engineering-led brand makes those claims credible rather than marketing.
Third — and editorially the most interesting — is the NanoFiche 1,000-year caseback archive. A 19 mm disc holding 3 GB of curated cultural data rated to outlast a millennium under vacuum, radiation and thermal-extreme conditions is the kind of detail that sits adjacent to MB&F or Urwerk territory at a fraction of the price (Urwerk's UR-100V Iron is CHF 70k+; MB&F's LM-101 is USD 60k+). It is also a meaningful provenance hook: the NanoFiche substrate is the same media format used by NASA's lunar archive missions, and Barrelhand's Monolith IM-1 prototype was carried on the Intuitive Machines IM-1 mission in February 2024 — the first commercial soft-touchdown on the Moon. Few sub-USD-10k watches can claim that.
History
Barrelhand was founded by Karel Bachand in California in 2019 as an aerospace-engineering-led independent watch brand, on the explicit thesis that the future of high-engineering horology would come from additive manufacturing and materials-science rather than complication. The brand spent its first three years building case-engineering process IP — including Scalmalloy 3D-printing competence and the NanoFiche-archive caseback construction — before publishing its first prototype Monolith IM-1 caseback for the Intuitive Machines lunar mission.
The Monolith IM-1 prototype caseback was carried on the Intuitive Machines IM-1 lunar lander in February 2024 — the first commercial soft-touchdown on the Moon — and the engineering brief from that flight directly generated the production Monolith spec sheet. The 2024–2025 period was spent on vacuum-chamber, thermal-shock and EVA-glove operability testing of the production case and movement. The 28 May 2026 announcement is the full commercial release on the back of those test cycles. Barrelhand's editorial positioning sits closest to Christopher Ward's C1 Bel Canto in value-engineering ambition — but with the materials-science narrative pushed considerably further. With Polar Watch Co.'s SLA-printed alloy work and Vortic Watch Co.'s American-manufacture model, Barrelhand belongs to a small American indie cohort building credible technical brands outside the traditional Swiss apparatus.
Sources
- SJX Watches — The Barrelhand Monolith Takes Flight
- Fratello — Blastoff For The Space-Going Barrelhand Monolith
- Gear Patrol — Did a Brand You've Never Heard of Just Make the Ultimate Space Watch?
- HiConsumption — Barrelhand's Monolith Space Watch Packs a 1,000-Year Human Archive Into The Caseback
- IMBOLDN — Barrelhand's Monolith Watch Is Built Like Aerospace Equipment
- Barrelhand — Monolith product page
